MANUFACTURER DEVICE NAME
Evolution DALI e64 Management Server
FUTURASMUS DEVICE NAME: KNX visualization, EVOLUTION-BMS-06, server, with functions: DALI, Ref. 63102-32-06
INFORMACIÓN DEL FABRICANTE
| Brand | : EVOLUTION |
| Reference | : 63102-32-06 |
| Family | : visualizations |
| Color | : |
| Warranty | : 2 years |
| Return allowed | : No |
MORE MANUFACTURER INFORMATION
| Price group | : HW |
| EAN code | : 2000000005836 |
| NC/TARIC code | : 84715000 |
| Country of origin | : ES |
| Net weight | : 2 kg |
| Gross weight | : 2 kg |
| Length | : 31 cm |
| Width | : 30 cm |
| Height | : 16 cm |
SPECIFICATIONS
- TCP/IP GATEWAY
- Web server for configurationWeb server for visu
- ACTUATOR TYPE
- Dimmer
- DIMMER/LOAD TYPE
- DALI / DSI / DMX / HUE
- GATEWAYS - LIGHTING
- DALI
- VISUALIZATION FUNCTIONS
- DALI, auto-intergration
- LICENCES - SOFTWARE MODULES - EXTENSIONS
- License
- SUPPORTS (RESOLUTION)
- Fixed resolutionResponsive, optimized for smartphoneResponsive, optimized for tablets
- HW/SOFTWARE FORMAT
- Server
- VISUALIZATION
- Type of visualization
- GATEWAY TYPE
- Lighting
DESCRIPCIÓN

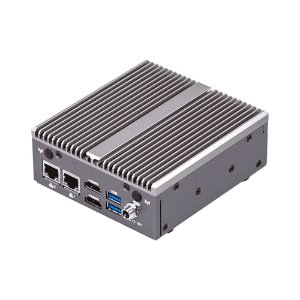

Evolution Dali e64 Management Server
This is a hardware designed exclusively to manage and control installations with a large number of DALI e64 gateways.
- It includes the Dali e64 web visual control module where you can create a topology of your installation and organize the luminaires, ballasts, batteries, ... and easily detect potential problems in your DALI installation on a day-to-day basis.
- It allows you to perform tests and visualize or search for historical results.
- Control lighting, change colors or brightness of your LEDs, ...
- DALI lighting allows you to make logics, scenas, time schedules of your objects.
- This equipment can also complement any EVOLUTION BMS Server, working as an HW Slave; so you can share the objects you want to view or control on your Evolution Master.
- Evolution e64 Management pre-installed.
- It includes licenses to control 30 Dali e64 IPAS gateways.
Attention! It does not include a module for the visualization of other types of objects such as KNX, BACNet, ModBus, etc.
