Bus supply unit 640 mA with auxiliary output
Producto descatalogado — Este producto está descatalogado por el fabricante; puede no estar disponible o solo bajo pedido.
FUTURASMUS DEVICE NAME: KNX power supply, 640mA, with additional output, Ref. EK-AG1-TP
INFORMACIÓN DEL FABRICANTE
| Brand | : Ekinex |
| Reference | : EK-AG1-TP |
| Family | : system-components |
| Color | : |
| Warranty | : 2 years |
| Return allowed | : No |
MORE MANUFACTURER INFORMATION
| Price group | : CD |
| EAN code | : 8018417180873 |
| Country of origin | : IT |
| Net weight | : 166 g |
| Gross weight | : 166 g |
| Length | : 8.2 cm |
| Width | : 8.2 cm |
| Height | : 8.2 cm |
SPECIFICATIONS
- SYSTEM COMPONENTS TYPE
- Knx power supplies
- ADDIONAL FEATURES
- Additional output
- AMPERAGE
- 640mA
- INTERFACE
- KNX
DESCRIPCIÓN
DESCRIPTION

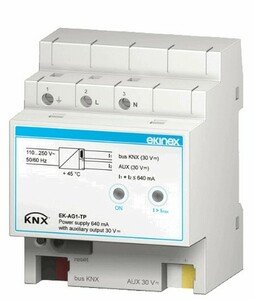

Device functioning as KNX bus line power supply with auxiliary output 30 Vdc. Mounting in distribution board on EN 60715 rail (4 modular units, each 18 mm). To be used in KNX installations for home and building automation.
FUNCTIONS / CHARACTERISTICS
- Power supply of a KNX bus line with max. 64 bus devices connected
- Auxiliary power supply 30 Vdc SELV
- Reset of the connected bus line through pushbutton
