Binary input 8 channels
INFORMACIÓN DEL FABRICANTE
| Brand | : Ekinex |
| Reference | : EK-CA1-TP |
| Family | : input |
| Color | : |
| Warranty | : 2 years |
| Return allowed | : No |
MORE MANUFACTURER INFORMATION
| Price group | : CD |
| EAN code | : 8018417180958 |
| Country of origin | : IT |
| Net weight | : 145 g |
| Gross weight | : 145 g |
| Length | : 7.8 cm |
| Width | : 7.8 cm |
| Height | : 7.8 cm |
SPECIFICATIONS
- INTERFACE
- KNX
- MOUNTING
- DIN rail
- NR. INPUTS
- 8 inputs
- SIGNAL TYPE INPUT / CONTACT
- Binary / potential free
- ONLY MODULE WITH INPUTS
- Yes - only inputs
DESCRIPCIÓN
DESCRIPTION

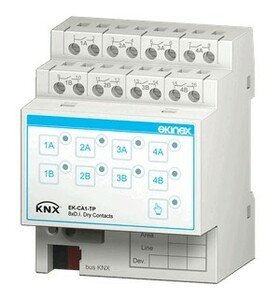

KNX 8-fold binary input for the connection of potential-free contacts. Mounting in distribution board on EN 60715 rail (4 modular units, each 18 mm). Power supply via bus. To be used in KNX installations for home and building automation.
FUNCTIONS / CHARACTERISTICS
- ON/OFF switching of single loads or group of loads
- dimming of lighting devices
- operating of shutters and roller blinds
- detecting the state of signaling contacts (from safety devices, alarms, etc.)
- recalling and saving of scenes
- sending on the bus of values (temperature, brightness, etc.)
- switching to forced functioning (lock)
- counting of impulses and switching cycles
