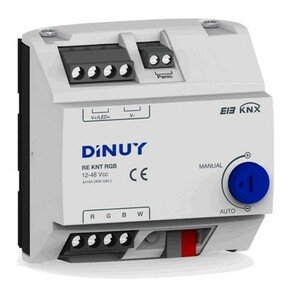

Actuador de Regulación Tiras LED 4 canales

• 4-channel LED Strips Dimming Actuator.
• Allows the control of 4 independent single-color, RGBW or RGB + W LED Strips.
• Valid for LED Strips with constant voltage input 12V-24V.
• PWM dimming technology.
• High load capacity. Incorporates 4 output channels with maximum 10A per channel, and a maximum capacity of 40A in total.
• Built-in front rotary knob which allows to check, manually, the correct operation of the dimmer, without KNX Bus.
• Protected against overloads and short-circuits. Incorporates resettable heating protection.
• Modular housing, DIN-rail mounting (5u).
• Programming and commissioning via ETS4 or later version.

TECHNICAL CHARACTERISTICS

Product reference	RE KNT RGB
Power Supply (V)	12Vcc - 48Vcc
Consumption	10mA
Output channels	4
Switching capacity (A)	10
Type of load	LED Strip RGBW
LED lamps load (W)	0
Maximum load LED Strip	40A (10A per channel)
Halogen lamps with ferromagnetic trafo (W	0
Motores (VA)	0
Maximum current input 1/10VDC (mA)	0
Maximum Number of Equipments	0
Binary/Analogic Inputs	0
Installation	DIN Rail
Module number	5
Control	KNX Bus
Programming by	ETS4 o posterior
Compatible with	KNX
Connection terminals	Captive Screws
Cable section (mm2)	6
Minimum Storage Temperature (ºC) (min)	-30
Maximum Storage Temperature (ºC) (max)	70
Minimum Working Temperature (ºC) (min)	-5
Maximum Working Temperature (ºC) (max)	45
Protection Degree	IP20 , UNE 20324
