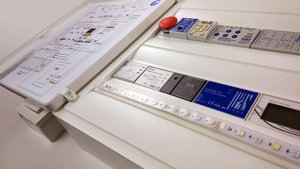

KNX Partner Practice Kit

Futurasmus has created a set of KNX components with an exceptional price designed primarily for people who are taking or have taken the Futurasmus online course, although it can be useful for any professional.

It is an excellent complement to the course, since it allows to carry out all the practices with real components (although it is not necessary, since the course includes practical exercises with an online simulator)

The devices included are fully operational KNX components, so they can then be reused in any real installation.

• 2 x webcode 20146 - KNX Power Supply 640mA, additional output 30VDC au, 3U
• 1 x webcode 19251 - Powerblock Multifunction actuator 4 outputs 16A, 140uF (4 ON / OFF or 2 blinds) / 6 binary or analog inputs, 4U DIN
• 1 x webcode 18682 - LED Controller 4-channel, 48A, RGBW, 4SU MDRC
• 1 x webcode 16254 - Apricum UIMtp - KNX USB Interface for TP, 2SU, REG
• 1 x webcode 41297 - Apricum MECtp - KNX LineArea Coupler, 2SU, REG
• 1 x webcode 14916 - PIAZZA RGB, 8-fold , surface pure white glossy
• 0.05 x webcpde 9959 - 100 meter reel of KNX bus cable , 2 pair, halogen free
• 5 x webcode 20256 - AK1 (RED/BLACK) bus connectors

In addition, the kit includes all the necessary conventional installation elements such as:

-KNX Cable Bus, 2 pairs, Halogen Free
-BUS CLEMS (RED / BLACK)
-Red Emergency Mushroom Push Button
-Adapters and contact elements MOELLER
-Double Push Button 2 contacts Normally Open. 10A
-Double Switch 10A
-Frame 3 White Elements
-White Double Key
-Surface Box 3 White Elements
-KIT STRIP 33 CM LED RGBW 24V + CABLE AND AIR CONNECTOR
-Switched Power Supply. Lane Din. 24V output adjustable. 36W
-Power Supply 5V 15W DIN rail
-Proto KIT Simulation Events KNX
-Surface Box 36 modules (2 rows) DIN Rail

The kit is supplied with assembly diagram.

A great novelty of this kit is the event simulator, with which you can have virtual luminaries and blinds so as not to require any additional physical element, this is achieved with the Proto KIT of KNX Event Simulation.

For training and monitoring of practices, we include training videos prepared by our technical department in detail to make the assembly of the kit.
