MANUFACTURER DEVICE NAME
UNIVERSAL INTERFACE 8 INPUT
FUTURASMUS DEVICE NAME: KNX universal interface, 8 inputs, potential free, for switch wall box, Ref. 48003
INFORMACIÓN DEL FABRICANTE
| Brand | : EAE |
| Reference | : 3330970 |
| Family | : input |
| Color | : |
| Warranty | : 2 years |
| Return allowed | : No |
MORE MANUFACTURER INFORMATION
| Price group | : CD |
| EAN code | : 2000000031101 |
| NC/TARIC code | : 853710910000 |
| Country of origin | : TR |
| Net weight | : 6 g |
| Gross weight | : 4 g |
| Length | : 9.5 cm |
| Width | : 2 cm |
| Height | : 7 cm |
SPECIFICATIONS
- INTERFACE
- KNX
- MOUNTING
- Switch wall box
- UNIVERSAL PUSH BUTTON INTERFACE
- Yes - universal interface
- FUNCTIONES
- CounterDimmingShort long pressShutter / blindsSwitchingToggleToggle on press and releaseValue
- NR. INPUTS
- 8 inputs
- SIGNAL TYPE INPUT / CONTACT
- Binary / potential free
- ONLY MODULE WITH INPUTS
- Yes - only inputs
DESCRIPCIÓN

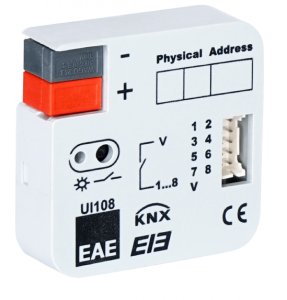

UI108 - Universal Interface
6 Different Operating Modes
EAE KNX Universal Interface is used to convert conventional switches into KNX. Any dry contact outputs can be connected to UI108 to be used with KNX.
General Specifications
Colored connection cables
Flush mounted into switch boxes
Does not require an external power supply
8 input channels with each featuring following functions:
Switching
Dimming
Curtain control
Value and priority
Scene control
Pulse counter
