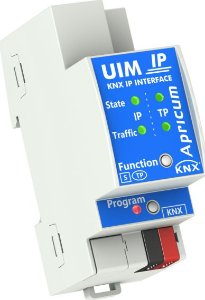

Apricum UIMip - KNX IP Interface with 4 tunneling channels, 2SU, REG
INFORMACIÓN DEL FABRICANTE
| Brand | : Apricum |
| Reference | : UIMip |
| Family | : system-components |
| Color | : |
| Warranty | : 2 years |
| Return allowed | : No |
MORE MANUFACTURER INFORMATION
| Price group | : A |
| EAN code | : 2000000032214 |
| NC/TARIC code | : 85176200 |
| Country of origin | : DE |
| Net weight | : 7 g |
| Gross weight | : 7 g |
| Length | : 6.2 cm |
| Width | : 6.2 cm |
| Height | : 6.2 cm |
SPECIFICATIONS
- SYSTEM COMPONENTS TYPE
- Programming interfaces
- TYPE (PROTOCOL)
- IP
- TCP/IP GATEWAY
- Type, router / gateway
- TYPE KNX/NET-IP (ROUTE, ETC.)
- KNXnet/IP gateway, no routing
- NR. TUNNEL CONNECTIONS
- 4 tunnel connections
- INTERFACE
- KNXKNXnet/IP
- MOUNTING
- DIN rail
DESCRIPCIÓN
KNX IP Interface with 4 tunneling channels
With the UIMip interface it is possible to access every bus device in the KNX bus system. An easy way to connect the PC to the KNX network via IP.
UIMip does not need an additional power supply. Without additional power supply there is more space in the distribution board, less cabling and less mounting time, all benefits resulting in lower installation cost. The moderate energy demand of the interface device is covered from the KNX bus system.
Features / Benefits
Web front-end for status and diagnostics
4 KNXnet/IP Tunnelling connections
Tunneling connection for ETS and visualisations
power supply via KNX TP
low power consumption
