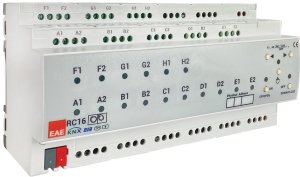

RCU1600 KNX ROOM CONTROL UNIT 16CH, 16 INPUT FANCOIL, SWITCH, BLIND ACTUATOR
INFORMACIÓN DEL FABRICANTE
| Brand | : EAE |
| Reference | : 3338494 |
| Family | : actuator |
| Color | : |
| Warranty | : 2 years |
| Return allowed | : No |
MORE MANUFACTURER INFORMATION
| Price group | : CD |
| EAN code | : 2000000033136 |
| NC/TARIC code | : 853710910000 |
| Country of origin | : TR |
| Net weight | : 65 g |
| Gross weight | : 58 g |
| Length | : 18 cm |
| Width | : 9.5 cm |
| Height | : 7 cm |
SPECIFICATIONS
- INTERFACE
- KNX
- MOUNTING
- DIN rail
- ACTUATOR TYPE
- Binary, relay outputs
- BINARY OUTPUTS FUNCTIONALITY
- 3 point valvesBinary, on/offBlinds AC, 2 outputs = 1 blindBlinds DC, 4 outputs = 1 blindFan coil, 4-outputs = 1 fan coilPWM vales, more than one output needed
- TOTAL MAX. NR. OF FAN COILS
- 4
- FAN COIL TYPE (2/4 PIPES)
- 2 pipes4 pipes
- OUTPUT TYPE (BINARY OR 0-10V)
- Relays for fan and valve
- CONTACT TYPE
- Capacitive
- MAX. CAPACITIVE LOAD
- 140µF
- NR. OF OUTPUTS
- 16 binary outputs / 8 channel shutter
- ADVANCED FUNCTIONS
- Type of function
- ADVANCED FUNCTIONS VARIOUS
- Boolean logicScenesTimers
- ADVANCED BINARY FUNCTIONS
- Behaviour at bus power failureBehaviour at bus voltage returnDisable
- SHUTTER/BLIND ADVANCED FUNCTIONS
- Behaviour at bus voltage failureBehaviour at bus voltage returnBlockingPresets
- NR. INPUTS
- 16 inputs
- SIGNAL TYPE INPUT / CONTACT
- Binary / potential free
DESCRIPCIÓN
EAE Room Controller Unit is an all-in-one KNX device to control various different room units from a single interface. Room Control Unit provides control of lights, blinds and fan coils as well as optional dry contact inputs.
General Specifications
Does not require an external power supply
Room Control Unit covers all requirements of control in room applications and offers following functions:
Light switch
AC/DC blind control
Fan control
Fan Coil Control (2 & 3 point valve)
Dry contact inputs
Switching resistive, capacitive and inductive loads in accordance with EN 60669 with following functions:
Staircase
External logic
Priority
Threshold
Operating hour
Sweep
