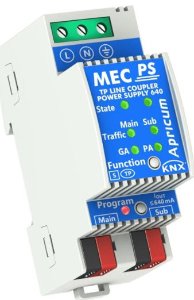

Apricum MECps640 - KNX LineArea Coupler with integrated 640mA KNX power supply, 2SU, REG

KNX Line-/Area Coupler with integrated 640 mA KNX power supply

The new MECps640 combines functionalities of two different KNX system devices. Being a merger of TP line coupler and 640 mA bus power supply, MECps640 connects TP lines and simultaneously powers the Line on its secondary side.

MECps640 requires only 2 SU space on the DIN rail. Using the ultra-slim device instead of two separate bigger ones leads to a remarkable advantage. Installations can be planned much more compact and projects become more cost-efficient. All filtering and special functions of TAPKO´s highly appreciated line coupler MECtp are present. This product is available as OEM.

Features / Benefits

• Overload and short circuit protection
• Bus line reset via local push button
• multi colour LEDs show status information
• Leakage loss < 5 W
• compact housing (2SU)
• supply of sub line / segment
• KNX-output (sub line): 28V -31V DC, 640mA
• various routing filter for group and individual telegrams
• support of long telegrams
• temporary disabling of routing filter via button
• blocking of configuration on upper lines from sub line
• various ACK and repetition settings
• integrated ACK generator
