MANUFACTURER DEVICE NAME

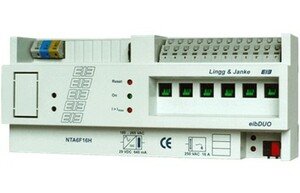

eibDUO power supply actuator 320mA 6fold 16A hand
FUTURASMUS DEVICE NAME: KNX power supply, NT320A6F16H, 320mA, with actuator, 6 binary outputs, 16A C-load, DIN rail, serie eibSOLO, Ref. 89211
INFORMACIÓN DEL FABRICANTE
| Brand | : Lingg&Janke |
| Reference | : 89211 |
| Family | : system-components |
| Color | : |
| Warranty | : 2 years |
| Return allowed | : No |
MORE MANUFACTURER INFORMATION
| Series | : eibSOLO |
| Price group | : PG1 |
| Country of origin | : DE |
| Net weight | : 592 g |
| Gross weight | : 592 g |
| Length | : 12.5 cm |
| Width | : 12.5 cm |
| Height | : 12.5 cm |
SPECIFICATIONS
- SYSTEM COMPONENTS TYPE
- Knx power supplies
- AMPERAGE
- 320mA
- INTERFACE
- KNX
- MOUNTING
- DIN rail
- ACTUATOR TYPE
- Binary, relay outputs
- BINARY OUTPUTS FUNCTIONALITY
- Binary, on/off
- TOLERATED CURRENT
- 16A
- CONTACT TYPE
- Capacitive
- NR. OF OUTPUTS
- 6 binary outputs / 3 channel shutter
DESCRIPCIÓN
actuator 6-fold 16A with PSU 320 mA The eibDUO Series switching actuator and power supply contains a 6-channel actuator and a 320mA EIB voltage supply in one housing. The actuator part is particularly suitably to high and capacitive loads with high switching on current (C-load). Contact rating per contact amounts to 16A with 250V AC, each channel its own phase can be assigned. Each contact is on one screwless double clamp. Thus standard grinding through of the phase and a duplicate of the output terminal are problem-free. Each channel also has a manual control, which serves also as mechanical on/off indicator.
