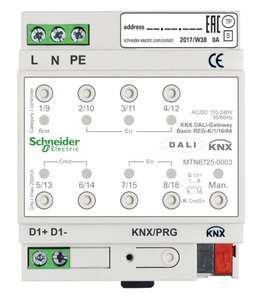

KNX DALI-Gateway Basic REG-K/1/16/64

.The KNX DALI Gateway Basic REG-K/1/16/64 (referred to below as the gateway) connects the KNX bus to the DALI bus. Lights with DALI electronic ballasts can therefore be integrated into a complete KNX system in the form of a subsystem and operated using the wide range of KNX devices available. The device converts switching and dimming commands of the connected KNX system into corresponding DALI telegrams or status information from the DALI bus into KNX telegrams. The electronic ballasts can be switched, dimmed or set to a defined value in 16 groups for each gateway

Technical data

Supply voltage: 100-240 V AC/DC, 50-60 Hz Power consumption: max. 9 W Power supply from KNX: 24 V DC (SELV), approx. 5 mA Operating elements: Programming button: Normal/programming mode 1 Manual mode button: Activating manual mode 8x Group buttons: Operation of the individual groups in manual mode Display elements: Programming LED, red: Normal/programming mode LED RGB: Manual mode and fault messages 8x LED, red: Group statuses and fault messages DALI: Outputs: D+, DNumber of electronic ballasts: Connection of up to 64 electronic ballasts Output voltage: approx. 16 V DC, short-circuit proof (basic insulation, not SELV) Output current: Max. 250 mA Type: Category 1 control unit (single master) Connections: Supply voltage: Screw terminal 3x 1- 2.5 mm2 single-core and multi-core DALI bus: Screw terminal 2x 1- 2.5 mm2 single-core and multi-core KNX: Bus connecting terminal Ambient operating temperature: -5 °C to +45 °C Relative humidity (non-condensing): 5% to 93% Degree of contamination: 2 Overvoltage category: III Device width: 4 modules = approx. 72 mm
